Cannon LX-MU500Z Projector is featured with corner adjustment, allowing users to fine tun the image, you can adjust each corner of image through corner adjustment funtion. Keep on reading to find out detailed steps.

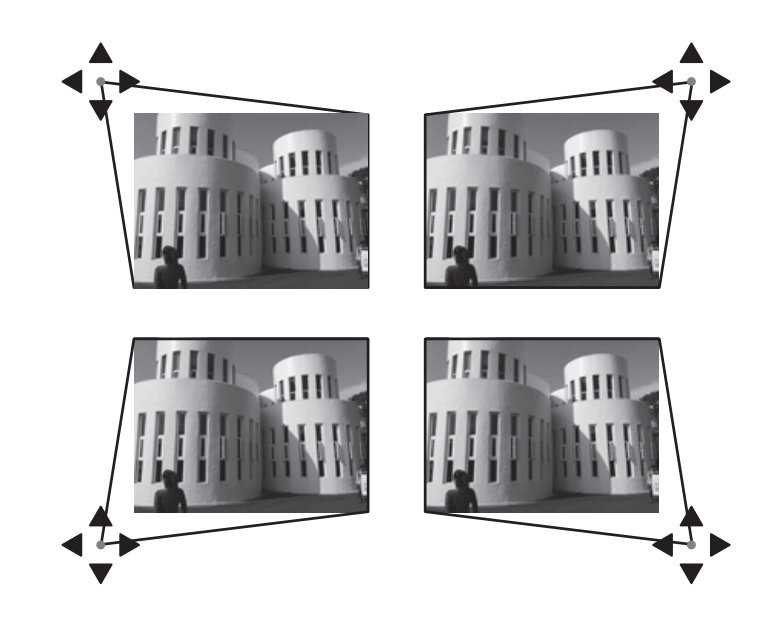

This function allows you to correct each distorted image corner to get a perfect rectangular image. You can manually adjust four corners of the image by setting the horizontal and vertical values.

How to use corner adjustment of Cannon LX-MU500Z Projector

  1. After the Corner Adjustment page is displayed, press up/down/right/left button to select one corner and press OK/IMAGE.
  2. Press up/down button to adjust vertical values.
  3. Press right/left button to adjust horizontal values.
  4. After one corner is adjusted, press MENU to return to the Corner Adjustment correction page.
  5. You can press up/down/right/left button to select another corner and repeat step 2-5 to make more adjustments.
