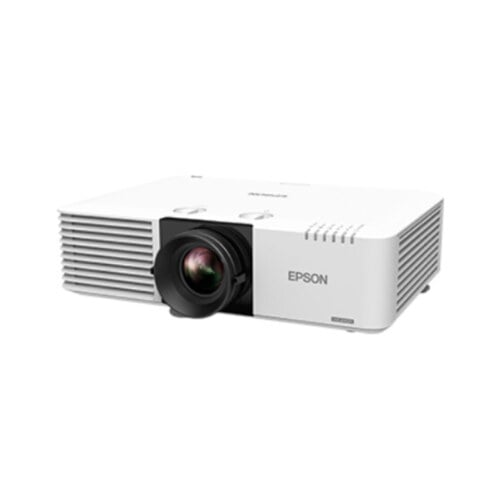

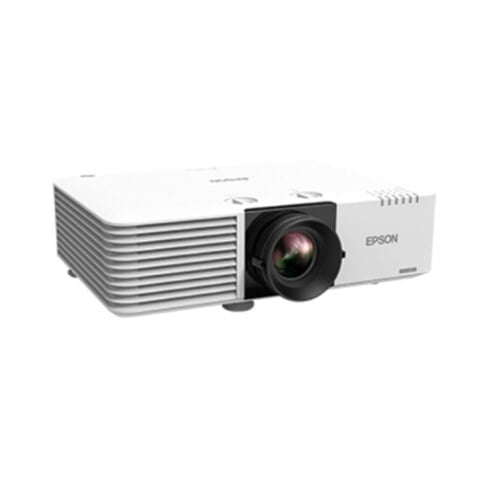

EPSON CB-L500W

EPSON CB-L500W
Brand: Epson
Category: projector
  • Lumens: 5000 lumens
  • Standard Resolution: WXGA(1280*800)
  • Display Chip: three × 0.59 inch chip
  • Display Technology: 3LCD
  • CPU:
  • RAM:
  • Storage:

Our Rating

The overall rating is based on review by our experts

5.6 2.8 1
  • Appearance design 6 / 10
  • Picture Quality 7 / 10
  • Brightness 7 / 10
  • Content Resources 5 / 10

Media Reviews

Epson CB-L500W is a laser projector that features a 20,000-hour long-life light source, optical components optimized for high brightness and compactness, custom brightness, and constant output.

In terms of optical components, unlike traditional laser diode light emitting plates, Epson CB-L500W uses a compact laser diode collection plate to output the same energy while reducing the projector’s size, matching the original reflective fluorescent wheel to effectively reduce light energy loss and achieve compactness and high brightness.

EPSON CB-L500W - Specs

Optical Parameters

Brand Brand Epson
Brand Model Brand Model epson CB-L500W
Brightness (ANSI lumens) Brightness (ANSI lumens) 5000 lumens
Display Chip Display Chip three × 0.59 inch chip
Display Technology Display Technology 3LCD
Standard Resolution Standard Resolution WXGA(1280*800)
Image Contrast Ratio Image Contrast Ratio 2500000:1
Throw Ratio Throw Ratio 1.38-2.24
Keystone Correction Keystone Correction Horizontal: ± 30 degrees
Vertical: ± 30 degrees
Lamp Life Lamp Life Normal mode: 20000 hours, economic mode: 30000 hours
Lamp Type Lamp Type laser
Focus technology Focus technology Manual focus

Projection Parameters

Image Size Image Size,projector1 29-280 inches
Screen ratio Screen ratio 16:10
Projection method Projection method Forward projection, rear projection, table, ceiling

Ports

I/O Connection Ports Connection Ports two × HDMI (hdmi2 supports MHL)
one × Video input: RCA
one × Audio input: RCA
two × Video input: D-sub 15 pin
two × Audio input: stereo mini
one × Microphone input

Other

Size(HxWxD) Size(HxWxD) four hundred and forty × one hundred and forty × 349mm
Power Usage Power Usage Normal mode: 322W, economic mode: 244w, standby power: 0.3w
Noise Level Noise Level Normal mode: 37db, economic mode: 25dB
Machine weight Machine weight 7.4kg
Accessories Accessories Power cord (3m)   x1
Vag cable (1.8m)   x1
Remote control   x1
Battery (AA)   x2
User manual (CD-ROM)   x1
Warranty Warranty 2 years
other other Adjustment function: color mode (dynamic, presentation, cinema, sRGB, DICOM SIM, multi picture projection)
          Gamma custom adjustment (gamma curve 9-point adjustment)
          Rgbcmy correction (hue, saturation and brightness of rgbcmy are adjustable)
Easy to use functions: fast four corner adjustment, arc correction, split screen projection, split screen projection, schedule setting
Advanced presentation management: Epson iprojection, Epson projector management, Epson projector content manager
