ViewSonic LS500WH vs ViewSonic LS550W: What Are the Differences?

ViewSonic LS500WH and ViewSonic LS550W are both new LED projectors that are released in 2022. The two projectors have the same resolution of 1280×800 and the same brightness of 2,000 ANSI lumens. But ViewSonic LS550W is a short-throw projector. In addition, ViewSonic LS550W supports four-corner correction technology, which is better in terms of image adjustment.

Check the side-by-side comparison below to get more differences between ViewSonic LS500WH and ViewSonic LS550W.

Product Name

ViewSonic LS500WH

ViewSonic LS550W

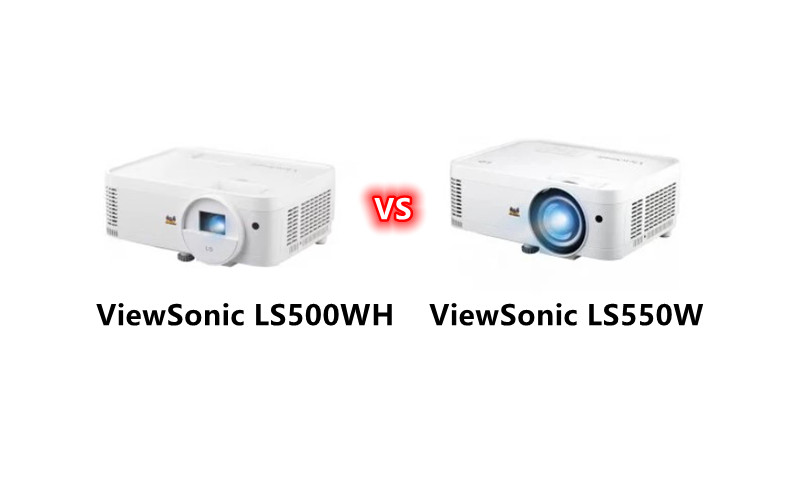

Product Image ViewSonic LS500WH ViewSonic LS550W
Price $599.00 $609.00
Our Rating 7.3 7.3
Brand ViewSonic ViewSonic
Category projector projector

Optical Parameters

ViewSonic LS500WHViewSonic LS550W
Brand Brand ViewSonic ViewSonic
Brand Model Brand Model ViewSonic LS500WH ViewSonic LS550W
Brightness (ANSI lumens) Brightness (ANSI lumens) 2,000 ANSI lumens 2,000 ANSI lumens
Display Technology Display Technology DLP DLP
Standard Resolution Standard Resolution 1280x800 1280x800
Maximum Supported Resolution Maximum Supported Resolution 1920 x 1080 1920 x 1080
Image Contrast Ratio Image Contrast Ratio 3000000:1 3000000:1
Throw Ratio Throw Ratio 1.55-1.70 0.49:1
Keystone Correction Keystone Correction Horizontal/Vertical keystone, +/- 40° Horizontal/Vertical keystone, H:+/-40° , V:+36°/-40°
Lamp Life Lamp Life 30000 hrs 30000 hrs
Lamp Type Lamp Type LED LED
Focus technology Focus technology Manual Manual

Projection Parameters

ViewSonic LS500WHViewSonic LS550W
Product type Product type Commercial projector Commercial projector
Image Size Image Size,projector1 30"-300" 60"-300"
Screen ratio Screen ratio 16:9 16:9
Screen color Screen color 1.07 Billion Colors 1.07 Billion Colors
Time to market Time to market 2022 2022

Ports

ViewSonic LS500WHViewSonic LS550W
I/O Connection Ports Connection Ports Input
HDMI: 1(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Audio-out (3.5mm): 1
Speaker: 2W
USB Type A (Power): 1 (5V/2A)
Control
RS232 (DB 9-pin male): 1
Input
Computer in (share with component): 1
HDMI: 1(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 2W
USB Type A (Power): 1 (5V/2A)
Control
RS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1(share with USB A Output)

Other

ViewSonic LS500WHViewSonic LS550W
Size(HxWxD) Size(HxWxD) 293x221x115mm 293x221x115mm
Power Usage Power Usage 156W 157W
Noise Level Noise Level Audible Noise (Normal): 30dB Audible Noise (Eco): 26dB Audible Noise (Normal): 30dB Audible Noise (Eco): 26dB
Machine weight Machine weight 2.45kg 2.45kg
Accessories Accessories Power Cord: 1
Remote Control: 1
QSG: Yes
Power Cord: 1
VGA Cable: 1
Remote Control: 1
QSG: Yes
Lens Cover: Yes
Warranty Card: Yes (CN Only)
other other Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
