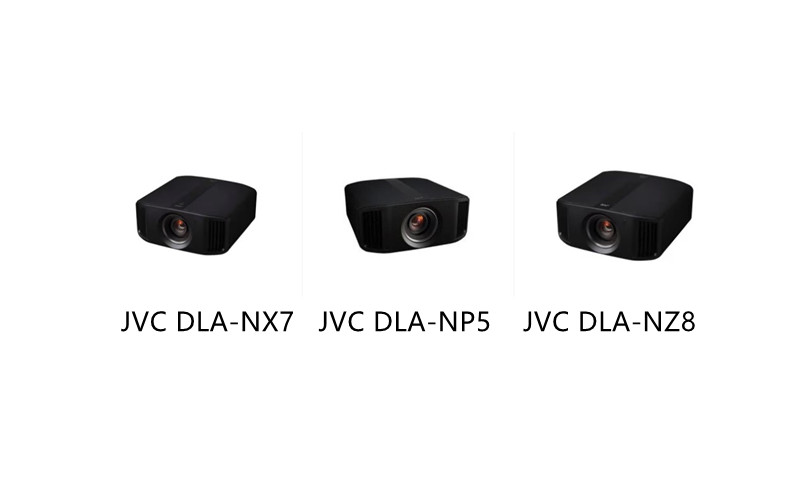

JVC DLA-NX7 vs JVC DLA-NP5 vs JVC DLA-NZ8

JVC DLA-NX7, JVC DLA-NP5, JVC DLA-NZ8 are D-ILA projectors. What are the differences between them?

JVC DLA-NX7 and JVC DLA-NP5 have the same 4K resolution while JVC DLA-NZ8 has an 8K resolution.

In terms of the light source, JVC DLA-NZ8 adopts a laser as the light source while JVC DLA-NX7 and JVC DLA-NP5 adopt different lamps as light sources. Compared with the other two projectors, JVC DLA-NZ8 has no trouble of frequent lamp replacement.

Product Name

JVC DLA-NX7

JVC DLA-NP5

JVC DLA-NZ8

Product Image JVC DLA-NX7 JVC DLA-NP5 JVC DLA-NZ8
Price $8,999.95 $6,999.00 $14,999.95
Our Rating 7.5 8.0 8.3
Brand JVC JVC JVC
Category projector projector projector

Optical Parameters

JVC DLA-NX7JVC DLA-NP5JVC DLA-NZ8
Brand Brand JVC JVC JVC
Brand Model Brand Model JVC DLA-NX7 JVC DLA-NP5 DLA-NZ8
Brightness (ANSI lumens) Brightness (ANSI lumens) 1,900 ANSI Lumens 1,900 ANSI lumens 2,500 ANSI Lumens
Display Chip Display Chip 0.69" D-ILA x 3 0.69-in D-ILA 3× 0.69 inch chip
Display Technology Display Technology D-ILA D-ILA D-ILA
Standard Resolution Standard Resolution 3840x2160 4K (3840x2160) 8K (8192 x 4320)
Maximum Supported Resolution Maximum Supported Resolution 3840x2160 4K (3840x2160) 8K (8192 x 4320)
Image Contrast Ratio Image Contrast Ratio 800,000:1 400,000:1 80,000:1
Throw Ratio Throw Ratio 1.40:1 - 2.80:1 1.43-2.94
Keystone Correction Keystone Correction Vertical only Yes Vertical/Horizontal, motorized
Lamp Life Lamp Life 3,500 hours / 4,500 hours (Eco)
Lamp Type Lamp Type 265W NSH bulb ultra-high pressure mercury lamp BLU-Escent laser
Projector lens Projector lens Glass Glass Glass
Focus technology Focus technology Powered focus Motorized focus Auto

Projection Parameters

JVC DLA-NX7JVC DLA-NP5JVC DLA-NZ8
Product type Product type Home theater Laser projector Laser projector
Image Size Image Size,projector1 59.59" - 200.59" 60-200 inches
Screen ratio Screen ratio 1.89:1 (4K HD) 16:9 17:9
Image Technology Image Technology HDR10+ HDR10
3D Stereoscopic film is a type of film that was first introduced in Hollywood on May 24, 1953 when stereoscopic films appeared. Full HD 3D Yes Yes
Sound System Sound System No
Time to market Time to market 2022 2021

Ports

JVC DLA-NX7JVC DLA-NP5JVC DLA-NZ8
I/O Connection Ports Connection Ports 12-Volt Trigger
HDMI (HDCP 2.2) x 2
Network: RJ-45
RS232: DB-9pin
HDMI 2.1; Ethernet (RJ45), USB ; RS-232C; 12V trigger HDMI*2,
RS-232C*1,
LAN*1 (RJ-45),
Trigger x 1 (Mini jack);
USB*1 (Type A)
WiFi WiFi Yes

Other

JVC DLA-NX7JVC DLA-NP5JVC DLA-NZ8
Size(HxWxD) Size(HxWxD) 9.30" x 19.80" x 19.50" 9.22 x 19.69 x 19.5 inches 500 x 234 x 505
Power Usage Power Usage 400 Watts
Noise Level Noise Level 24dB
Machine weight Machine weight 44.0 lbs 42.3 pounds 23.1 KG
