JVC DLA-NP5 vs DLA-NZ8 vs DLA-NZ9

JVC DLA-NP5, JVC DLA-NZ8, and JVC DLA-NZ9 are all D-ILA projectors, but they are varied in pricing. What are the differences between them?

In terms of resolution, JVC DLA-NP5 has 4K resolution while JVC DLA-NZ8 and JVC DLA-NZ9 have 8K resolution.

For the light sources, JVC DLA-NP5 adopts an ultra-high pressure mercury lamp while JVC DLA-NZ8 and JVC DLA-NZ9 adopt BLU-Escent laser as light sources.

In terms of brightness, JVC DLA-NZ9 is rated at 3,000 ANSI Lumens; JVC DLA-NZ8 has 2500 ANSI lumens; JVC DLA-NP5 is rated at 1,900 ANSI lumens. That’s to say, JVC DLA-NZ9 has the brightest images among the three projectors.

To conclude, JVC DLA-NZ9 has the best overall performance in terms of brightness, light source, and image contrast.

Product Name

JVC DLA-NP5

JVC DLA-NZ8

JVC DLA-NZ9

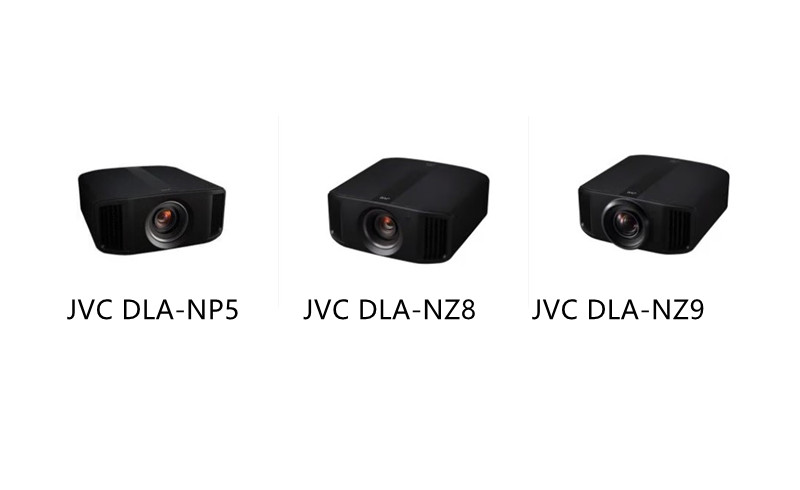

Product Image JVC DLA-NP5 JVC DLA-NZ8 JVC DLA-NZ9
Price $6,999.00 $14,999.95 $24,999.95
Our Rating 8.0 8.3 8.5
Brand JVC JVC JVC
Category projector projector projector

Optical Parameters

JVC DLA-NP5JVC DLA-NZ8JVC DLA-NZ9
Brand Brand JVC JVC JVC
Brand Model Brand Model JVC DLA-NP5 DLA-NZ8 DLA-NZ9
Brightness (ANSI lumens) Brightness (ANSI lumens) 1,900 ANSI lumens 2,500 ANSI Lumens 3,000 ANSI Lumens
Display Chip Display Chip 0.69-in D-ILA 3× 0.69 inch chip 3× 0.69 inch chip
Display Technology Display Technology D-ILA D-ILA D-ILA
Standard Resolution Standard Resolution 4K (3840x2160) 8K (8192 x 4320) 8K (8192 x 4320)
Maximum Supported Resolution Maximum Supported Resolution 4K (3840x2160) 8K (8192 x 4320) 8K (8192 x 4320)
Image Contrast Ratio Image Contrast Ratio 400,000:1 80,000:1 100,000:1
Throw Ratio Throw Ratio 1.43-2.94
Keystone Correction Keystone Correction Yes Vertical/Horizontal, motorized Vertical/Horizontal, motorized
Lamp Type Lamp Type ultra-high pressure mercury lamp BLU-Escent laser BLU-Escent laser
Projector lens Projector lens Glass Glass Glass
Focus technology Focus technology Motorized focus Auto Auto

Projection Parameters

JVC DLA-NP5JVC DLA-NZ8JVC DLA-NZ9
Product type Product type Laser projector Laser projector Laser projector
Image Size Image Size,projector1 60-200 inches
Screen ratio Screen ratio 16:9 17:9 17:9
Image Technology Image Technology HDR10+ HDR10 HDR10
3D Stereoscopic film is a type of film that was first introduced in Hollywood on May 24, 1953 when stereoscopic films appeared. Yes Yes Yes
Time to market Time to market 2022 2021 2021

Ports

JVC DLA-NP5JVC DLA-NZ8JVC DLA-NZ9
I/O Connection Ports Connection Ports HDMI 2.1; Ethernet (RJ45), USB ; RS-232C; 12V trigger HDMI*2,
RS-232C*1,
LAN*1 (RJ-45),
Trigger x 1 (Mini jack);
USB*1 (Type A)
HDMI*2,
RS-232C*1,
LAN*1 (RJ-45),
Trigger x 1 (Mini jack);
USB*1 (Type A)
WiFi WiFi Yes Yes

Other

JVC DLA-NP5JVC DLA-NZ8JVC DLA-NZ9
Size(HxWxD) Size(HxWxD) 9.22 x 19.69 x 19.5 inches 500 x 234 x 505 500 x 234 x 528 mm
Noise Level Noise Level 24dB 24dB
Machine weight Machine weight 42.3 pounds 23.1 KG 25.3kg
