Epson CB-L23000U vs Epson CB-L200W: Which is Better?

Epson CB-L23000U and Epson CB-L200W are both 3LCD projectors. Both projectors have a contrast of 2,500,000:1. They both use lasers as the light source.

What are the differences between them? Check the side-by-side comparison below.

Product Name

Epson CB-L23000U

Epson CB-L200W

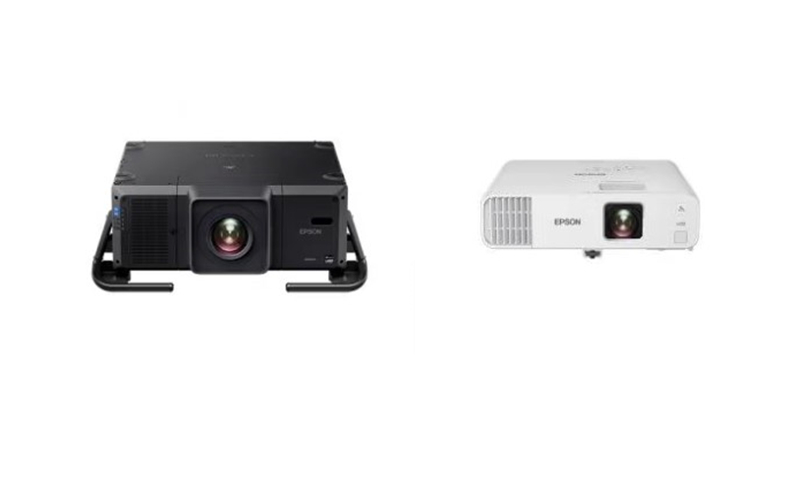

Product Image Epson CB-L23000U Epson CB-L200W
Our Rating 8.0 7.0
Brand Epson Epson
Category projector projector

Optical Parameters

Epson CB-L23000UEpson CB-L200W
Brand Brand Epson Epson
Brand Model Brand Model Epson CB-L23000U Epson CB-L200W
Brightness (ANSI lumens) Brightness (ANSI lumens) 23000 lumens 4200 lumens
Display Chip Display Chip 3 × 1.43 inch chip 0.59 inch chip
Display Technology Display Technology 3LCD 3LCD
Standard Resolution Standard Resolution WUXGA(1920*1200) WXGA(1280*800)
Image Contrast Ratio Image Contrast Ratio 2500000:1 2500000:1
Throw Ratio Throw Ratio 1.38-2.24
Keystone Correction Keystone Correction Vertical trapezoidal correction: ± 45 degrees (for elplm12 lens)
Horizontal trapezoidal correction: ± 30 degrees (for elplm12 lens)
Manual, automatic: ± 30 degrees
Lamp Life Lamp Life Normal mode: 20000 hours, extended mode: 30000 hours Normal mode: 20000 hours, economic mode: 30000 hours
Lamp Type Lamp Type laser laser
Focus technology Focus technology Manual focus

Projection Parameters

Epson CB-L23000UEpson CB-L200W
Screen ratio Screen ratio 16:10 16:10
Screen color Screen color Color processing: 10 bits
Projection method Projection method Forward projection, rear projection, ceiling


Epson CB-L23000UEpson CB-L200W
I/O Connection Ports Connection Ports one × Video input (D-sub 15 pin)
one × Video input (5 BNC)
one × HDMI
one × DVI-D
one × BNC(SDI)
one × RJ45(HD-BaseT)
one × Remote control input
D-sub 15pin   x2
RCA   x1
HDMI   x2
2 RCA (White x1, Red x1)   x1
Stereo mini socket   x2
Stereo mini socket   x1
RS-232C D-sub 9pin   x1


Epson CB-L23000UEpson CB-L200W
Size(HxWxD) Size(HxWxD) Excluding supporting feet: 790 × 299× 710mm Maximum size: 936 × 378.5 × 860mm 325x105x299mm
Power Usage Power Usage Normal mode: 2390w, economic mode: 1670w, standby power (Communication on): 2.5W, standby power (Communication off): 0.39w Standard mode: 254w, extended mode: 193w, energy saving power: 0.5W
Noise Level Noise Level Normal mode: 36 dB, environmental protection mode: 26 DB
Machine weight Machine weight 66kg 4.1kg
Accessories Accessories host   x1
power cord   x1
Remote control   x1
Battery   x2
Power cord 1.8m   x1
HDMI cable 1.8m   x1
Remote control   x1
Battery   x1
Warranty Warranty 2 years 2 years
